Camtech · L3 Managed PoE Switch

L3 Managed Ethernet Switch

L3 managed PoE+ switch with 48× Gigabit PoE+ ports, 760 W budget, and 4× 10G SFP+ uplinks for converged networks.

L3 Managed PoE SwitchCamtech

48-port gigabit PoE — 48 × 10/100/1000M RJ45 PoE ports for high-density device connectivity
High-power PoE — up to 760W PoE budget, with IEEE 802.3af/at support
10G high-speed uplink — 4 × 1000M Base-X SFP / 10G SFP+ ports
High-capacity Layer 3 switching — 176Gbps switching capacity with IPv4/IPv6 routing and advanced QoS/ACL capabilities

Enquire about this product Download datasheet

Product introduction

PoE access built for power-hungry devices.

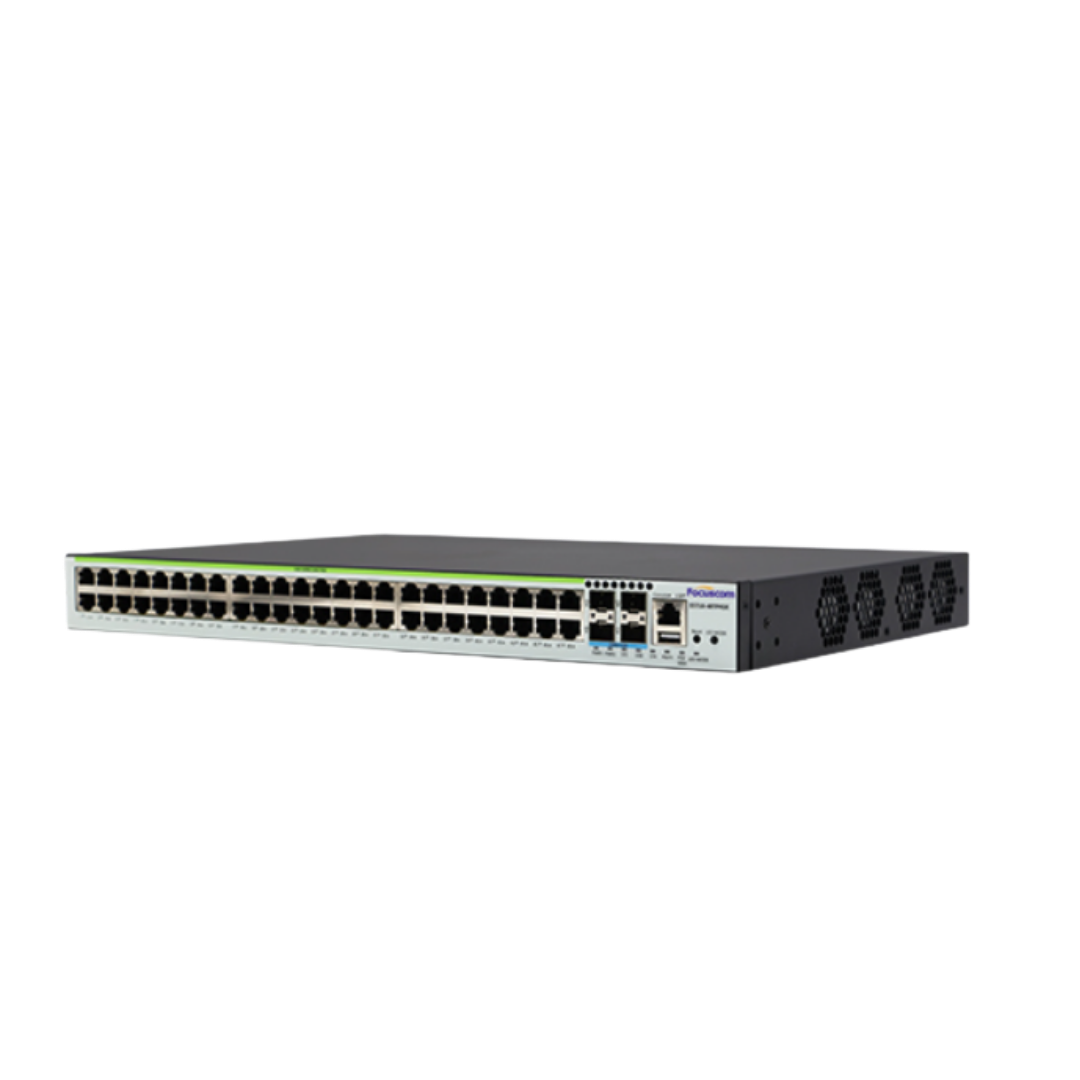

The S5710-48TP4SX is a Layer 3 Ethernet switch designed for cost-effective Gigabit PoE access and 10G uplink connectivity in enterprise and operator networks. With a 760W PoE budget and up to 30W per port, it delivers high-performance Gigabit forwarding with low power consumption, while supporting advanced QoS, ACL, IPv4/IPv6 routing, QinQ, SFlow, port mirroring, and flexible traffic classification and security features.

Use case

Wi-Fi AP deployments

Power and connect access points from a single switch.

Use case

IP camera networks

High-power PoE for surveillance infrastructure.

Use case

Converged networks

Data, voice and power over a single network platform.
